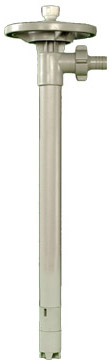

CPVC Series

Standard’s CPVC pump tube is engineered for transferring corrosive chemicals commonly used in the Water Treatment Industry. Robust CPVC offers excellent durability and chemical resistance.

Common Applications

  • Sodium hypochlorite
  • Calcium chloride
  • Calcium hydroxide
  • Chlorinated Water
  • Potassium Hydroxide
  • Sodium Bromide

Technical data

  • Wetted Materials: CPVC, Carbon & Hastelloy
  • Max. Viscosity:

– 1500 cps (mPas) (SP-280P, SP-ENC)
– 750 cps (mPas) (SP-A2, SP-400EX)
– 450 cps (mPas) (SP-A1)
– 200 cps (mPas) (SPE-250B)

  • Discharge options: 1″(25mm)/.75″ (19mm) Hose Barb
  • Pump Design: Seal-less / centrifugal
  • Max. Specific Gravity: 1.8
  • Max. Temp: 88 °C

Download

  • Applications Worksheet
  • Chemical Resistance Guide
  • Spare Part List

Model

Assembly

Immersion
Length

Shaft

Impeller

  SP-CPVC-27   CPVC   27″ (700 mm)   Hastelloy   High Volume
  SP-CPVC-39   CPVC   39″ (1000 mm)   Hastelloy   High Volume
  SP-CPVC-47   CPVC   47″ (1200 mm)   Hastelloy   High Volume
  SP-CPVC-50   CPVC   50″ (1270 mm)   Hastelloy   High Volume
  SP-CPVC-60   CPVC   60″ (1500 mm)   Hastelloy   High Volume
  SP-CPVC-72   CPVC   72″ (1800 mm)   Hastelloy   High Volume
  SP-CPVC-HH-27   CPVC   27″ (700 mm)   Hastelloy   High Pressure
  SP-CPVC-HH-39   CPVC   39″ (1000 mm)   Hastelloy   High Pressure
  SP-CPVC-HH-47   CPVC   47″ (1200 mm)   Hastelloy   High Pressure
  SP-CPVC-HH-50   CPVC   50″ (1270 mm)   Hastelloy   High Pressure
  SP-CPVC-HH-60   CPVC   60″ (1500 mm)   Hastelloy   High Pressure
  SP-CPVC-HH-72   CPVC   72″ (1800 mm)   Hastelloy   High Pressure

Warning: Not suitable for pumping flammable or combustible liquids.
