Pemo Pumps

Built Rugged for Exceptionally Life in Tought Applications.

Mining, Aggregate, Quarry & Mineral Extraction: PEMO Pumps are commonly used to feed hydrocyclones and transfer slurries in these applications.
Filter press Feed: Thanks to the unique Double Stage design, PEMO pumps stand alone in the filter press feed industry.
Stone Processing: PEMO is a world leader in the granite and marble industry.
Ceramics: PEMO is a world leader for pumps that transfer ceramic slip.
Chemical Process: PEMO pumps are used in the chemical industry for applications with both acids and abrasive slurries.
Steel Mills: Robust PEMO pumps are widely used to transfer hot water up to 100°C (180°F) containing oil and / or metal particles.
Power Plants: PEMO pumps are used for coal slurries, flyash, and SO2 scrubbers.

Datasheet Download
Information PEMO Pumps
Information for PEMO KFP

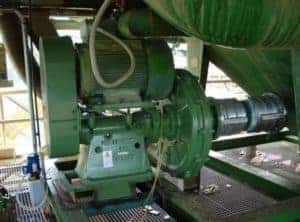

Horizontal Pumps

•  Designed for heavy duty slurry and / or acids.
• These are suction pumps with single or double mechanical seal.
• Capacities from 1 to 1500 m3 / h (5-6613 gpm).
• Usually maximum discharge pressure should not exceed 3 bar or 43 psi.
• The heart of PEMO product line, the AO / AB pump series, are truly unique. Due to the side
Inlet the maximum pressure on the mechanical seal will see is the inlet pressure,
greatly increasing life of the seal.
• Handling of aggressive media, acids, the shaft and the mechanical seal is
made of special alloys.
• Maximum particles size is 2 mm, and is dependent on the specific application.
• Capacities from 1 to 900 m3 / h (5 to 3.968 gpm).
• Maximum discharge head is 90 m (295 ft) in the Hardalloy PEMO design.
• The AO / AB / DC-series is the perfect solution for filter press feed or slurry transfer.
• Handling of aggressive media, acids, the shaft and the mechanical seal housing
can be made of special alloys.
• Maximum particle size is 1 mm and is dependent on the specific application.
• Capacities from 5 to 600 m3 / h (22 to 2.645 gpm).
• Maximum discharge head is 180 meters (590 ft) in Hard Alloy PEMO design.


Horizontal double stage pumps

• Designed for slurries and / or acids.
• The AO / AB / DC-series is the perfect solution for filter press feed or slurry transfer.
• Handling of aggressive media, acids, the shaft and the mechanical seal housing
can be made of special alloys.
• Maximum particle size is 1 mm, and is dependent on the specific application.
• Capacities from 5 to 600 m3 / h (22 to 2.645 gpm).
• Maximum discharge head is 180 meters (590 ft) in Hardalloy PEMO design.


Vertical Pumps

• Designed to support heavy slurris and / or aggressive fluids, acids.
Vertical pumps are manufactured in three different series:
• VEC – The VEC pump series corresponds to specific customer requirements.
• MEC – The MEC pump series has a direct transfer via a elastic joint. The engine is equipped with a protection and a Eyebolt for transport / assembly provided.
• OFF – The OFF-series pumps are suitable for dry running, because without mechanical seal.

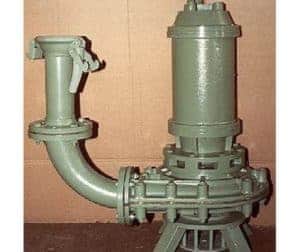

Submersible Pumps

• Abrasive liquids with suspended solids
• Depth or inaccessible bays
• Operating under the water surface
• Double mechanical seal with permanent lubrication
• No need for maintenance

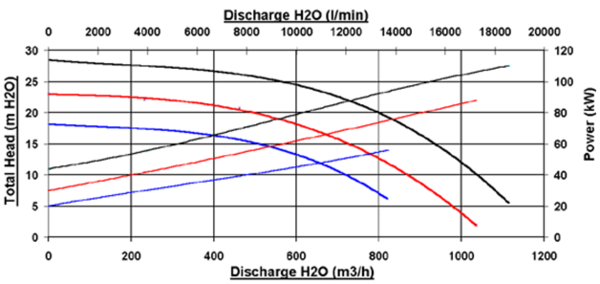

Performance
