Standard’s Batch Control System (BSC) is engineered to control, measure and dispense preset volumes of liquid from drums, IBC’s, plating tanks or any large storage vessel. The BCS can be used in an industry where batching, chemical packaging or dilution is required to be accurate and efficient. Simply dial in the desired volume, press ENTER and the BCS delivers a preset volume of liquid virtually hands-free.
Batch Control System – ELECTRIC Common Applications
- Chemical packaging
- Water Treatment Chemicals
- Chemistry for Plating Tanks
- Chemical Delivery
Features
- Turbine Paddle Wheel Design
- Measures: Gallons, Liters, Cubic Meters.
- Re-settable totalizer
- User friendly “In Field” calibration
Technical Data
- Flow range: 4,4 l/min – 102.2 l/min
- Max. Viscosity: 300 cps (mPas)
- Accuracy: +/- 0,61 % of Full Scale & +/- 1 % of Reading.
- Max. Temp: Polypropylene: 55°C & Stainless / PVDF: 80°C
Motor Drive
- Open drip proof (IP44) or TEFC (IP54) (110-120/220-240v)
Download

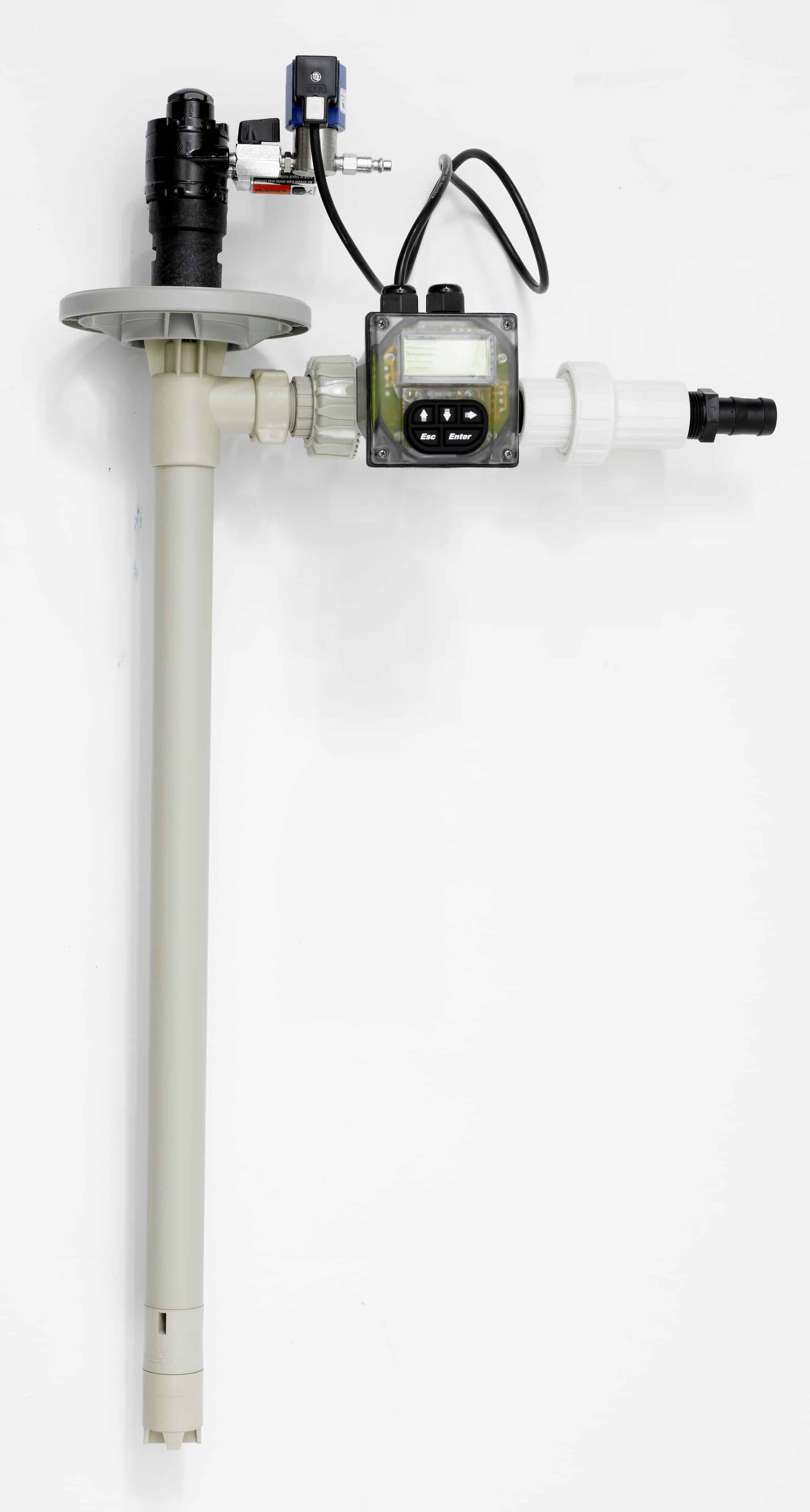

Batch Control System – AIR Common Applications
- Chemical packaging
- Water Treatment Chemicals
- Chemistry for Plating Tanks
- Chemical Delivery
Features
- Turbine Paddle Wheel Design
- Measures: Gallons, Liters, Cubic Meters.
- Re-settable totalizer
- User friendly “In Field” calibration
Technical data
- Flow range: 15,2 l/min – 75,7 l/min
- Max. Viscosity:300 cps (mPas)
- Accuracy: +/- 0,61 % of Full Scale & +/- 1 % of Reading.
- Max. Temp: Polypropylene: 55°C & Stainless / PVDF: 80°C
Motor Drive
- Air, 1/2 HP (370W)
