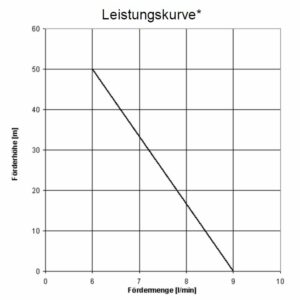

* The performance curve was calculated on the basis of water at 20°C
Flow Rate | Delivery Head |
---|---|
9.0 l/min | 0 m |
8.4 l/min | 10 m |
7.8 l/min | 20 m |
7.2 l/min | 20 m |
6.6 l/min | 40 m |
6.0 l/min | 50 m |

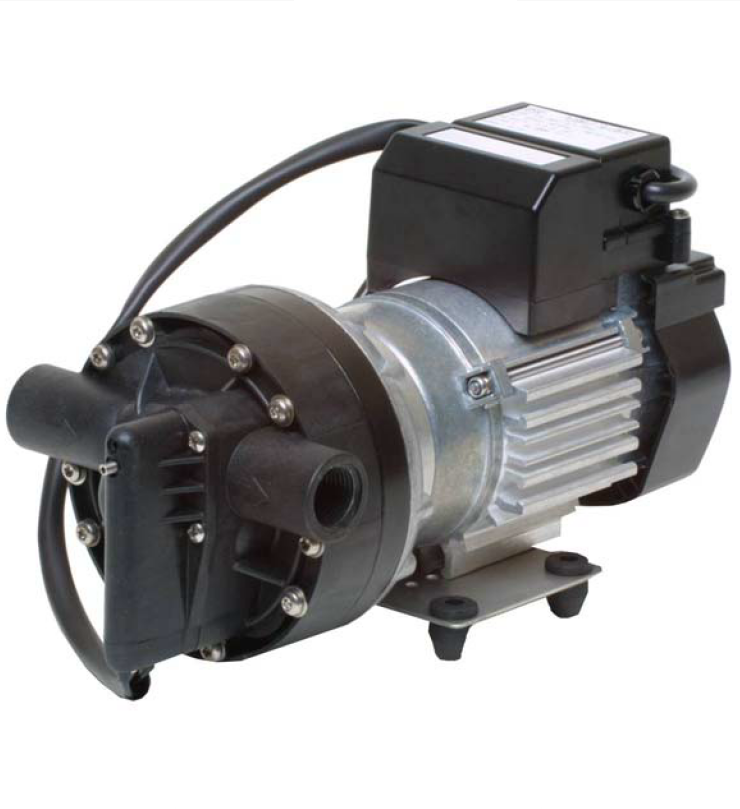

Technical Data
Flow Rate | 9 l/min | |||
Delivery Head | 50 m | |||
Temperature Range | ±0 bis +60°C | |||
Max. Specific Gravity | 1,0 Kg/dm3 bei max. 30cp Viskosität | |||
Pump Casing Pressure | 15 bar | |||
Pump Casing Material | PP | |||
Impeller | EPDM | |||
O-Ring | EPDM | |||
Motor | 230V 1Ph 50 Hz | 110V 1Ph 60 Hz | ||
Motor Capacity | 110 Watt , 40 Watt Ausgangsleistung (Output) | |||
Total Weight | ca. 3,4 kg |
Dimensions and component parts
Article numbers
The part numbers listed are the actual, that have changed in the past several times. When ordering spare parts, the located on the nameplate of the pump Item Number and Serial Number specify.
SD, AD, FD, PCQ Artikel-Nr.
SD 4/42: 486951
SD 9/38: 486963, 496932, 486952, 446981, 486926,
AD 4/90: 416916, 416906, 416962, 416989, 416977, 446938, 426913, 426951, 496946, 496985, 416912,, 216963, 216916, 216906, 216962, 216989, 216977, 246938, 226913, 226951, 296946, 296985, 216912
AD 550: 426948, 416978, 446941, 426953, 416964, 446967, 416905, 416990, 426944, 416922, 426943, 446944, 426988, 446960, 416955, 416919, 426977,, 216919, 226948, 216978, 246941, 226953, 216964, 246967, 216905, 216990, 226944, 216922, 226943, 246944, 226988, 246960, 216955, 216919, 226977;; 10047551
FD 3/75: 426978
FD 9/38: 426990;; 73705, 10009180
FD 4/90: 426983
PCQ 12/10: 226935;; 10013249
PCQ 16/20: ,, 026946
